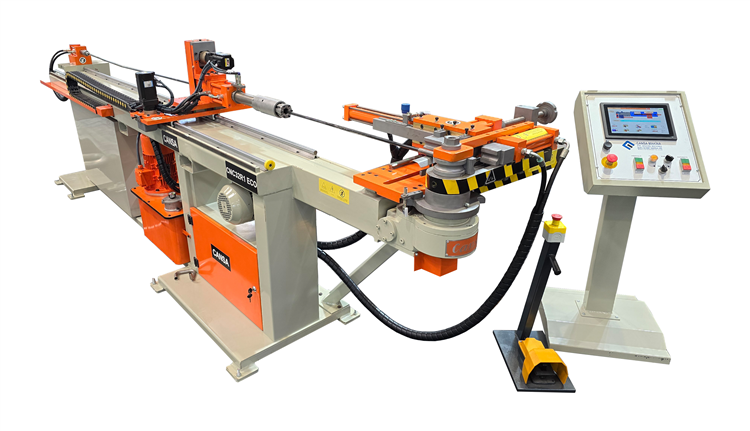

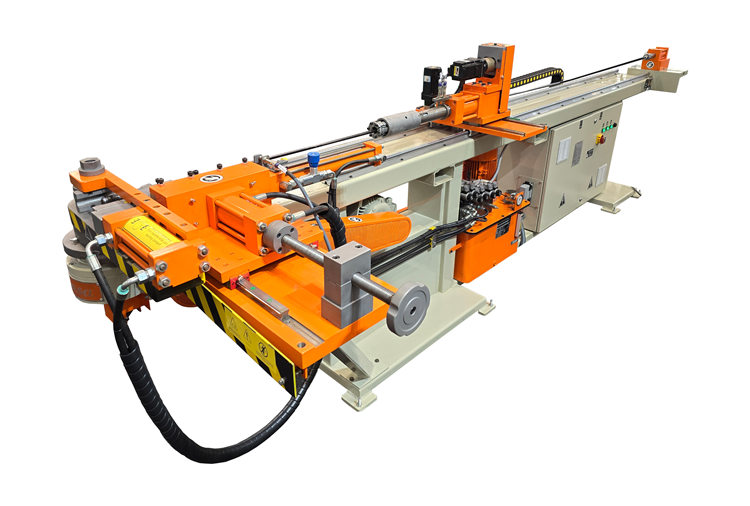

cnc32r1 Eco Pipe Bending Machine

CNC32R1 ECO

PHOTOS

VIDEOS

TECHNICIAL FEATURES

CNC tube bending machine

PLC kontrol

Maximum bending capacity 32X2 mm diameter

Feeding axis by servo motor

Rotation axis by servo motor

Hydraulic clamp

Hydraulic pressure die

Hydraulic mandrel

Hydraulic support

Hydraulic clow collet

Max. 190 bending angle

Bending degree with encoder

10” PC touch screen

3D simulation and .step file open loading

Manual, semi-automatic or automatic operation on the screen

Working without mandrel

To see daily / total amount of production on the screen

To follow error messages on the screen and on the watch page

Calculation of the length of tube or profile

Foot pedal or button control optionally

To record programmes on the memory

Total motor power 7.5 kW

Mandrel length 3150 mm.

Max. hydraulic pressure 130 bar

Safety plate on the front and back of the bending head

Supported bend arm and bottom arm

Electrical panel safety lock and panel lock with key

Two years guarantee; technical service and training confidency by CANSA MAKINA

Suitable for CE
