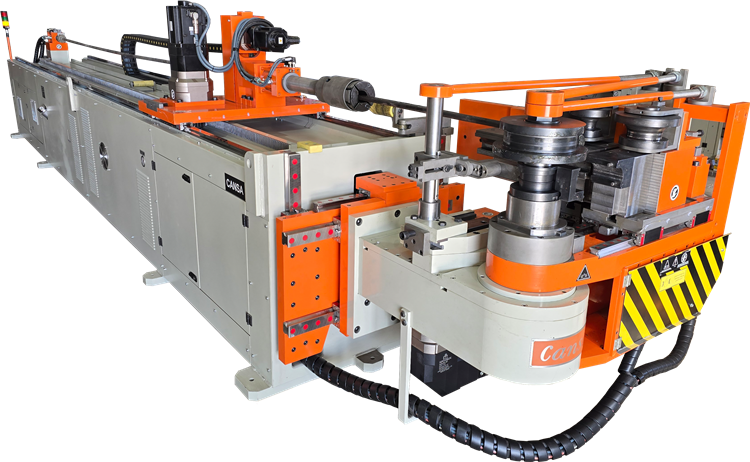

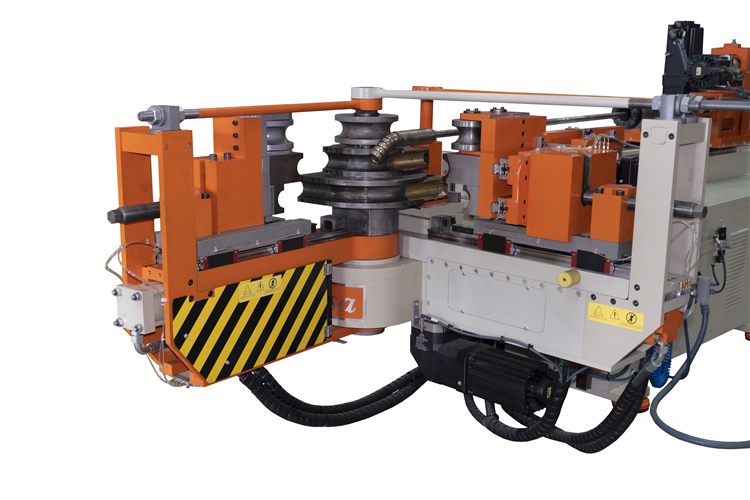

CNC80 R3

PHOTOS

VIDEOS

TECHNICIAL FEATURES

CNC tube bending machine

PLC control

Maximum bending capacity 80X3 mm diameter

To make rolling (to bend a wide range of bending with roller)

To work three different radius at the same time

Bending axis by servo motor

Feeding axis by servo motor

Rotation axis by servo motor

Mold axis by servo motor

Hydraulic clamp

Hydraulic mandrel

Hydraulic pressure die

Hydraulic support

Hydraulic clow collet

Hydraulic up-down movement

Max. 190 bending angle

Bending degree with encoder

Automatically activated hydraulic oil cooler and double fans

Timed automatic lubrication for working components

Automatic mandrel lubrication

15” PC touch screen

3D simulation

Manual, semi-automatic or automatic operation on the screen

To see daily / total amount of production on the screen

To follow error messages on the screen and on the watch page

Calculation of the length of tube or profile

Foot pedal or button control optionally

To record programmes on the memory

Mandrel length 3900 mm.

Max. hydraulic pressure 180 bar

Total motor power 30 kW

Security warning light

Safety plate on the front and back of the bending head

Supported bend arm and bottom arm

Electrical panel safety lock and panel lock with key

Two years guarantee; technical service and training confidency by CANSA MAKINA

Suitable for CE
